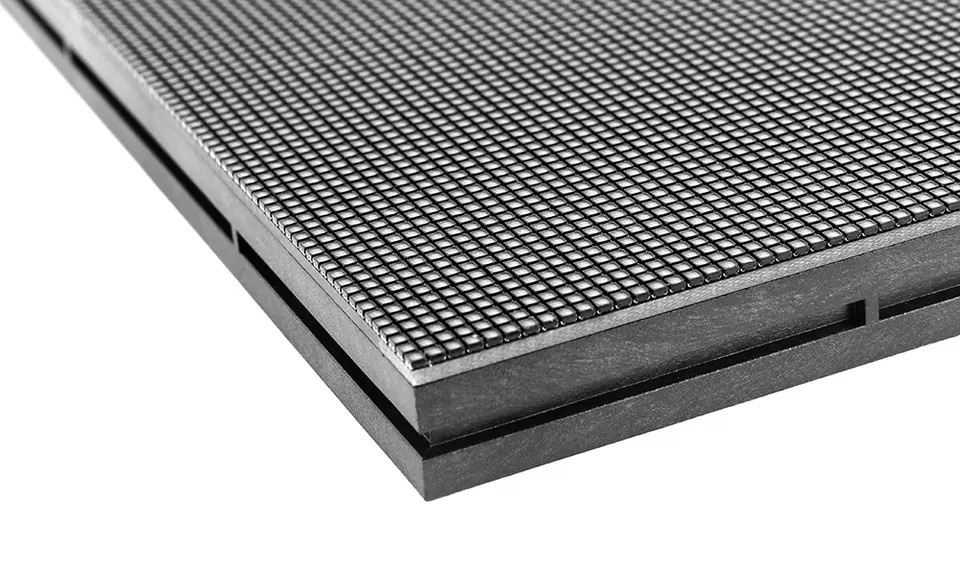

Five Pitch P1.86 Indoor Full Color led display screen module

1> High Quality indoor led module wholesale and OEM customized

2> Easy to splicing 16:9 ratio

3> Small spacing, easy to do 2K, 4K Ultra HD led screen

4> Full front maintemance without space needed for backside

5> Multiple installation way, DIY nunique shape.


Used in nightbar,DJ booth, commercial advertising led sign, retail shop, shopping mall and ect.

LED Module Parameters

Pxiel Pitch1.86mm
Pixels Density288906 dots/㎡
led Encapsulation 3 in 1 (1R1G1B), SMD1515
Module resolution172*86 dots
Module size320*160mm
Available cabinet size640*480mm & 640*640mm
Viewing AngleH140° V130°
Best viewing distance>= 2m
Working Voltage  & CurrentAC 110V-220V,  5A
Working temperature & Humidity-20℃-40℃,  10%RH -65%RH
Max power consuption480W/㎡
Average power consuption165W/㎡
Scanning Mode1/43 scan
Drive Typeconstant drive
Brightness wite balance500 -1300cd/sqm
Refresh Frequency1920HZ or 3840HZ opetional

Pixel Pitch: 1.860mm
Module Size: 320*160mm
Resolution: 172*86 dots
LED:  SMD1515
Brightness: ≥1000nits
Max Current: ≤5A
Pixel Density: 288906 dots/㎡
Refresh Rate: ≥ Q-PRO 3840Hz |  Q-E 1920HZ
Port: HUB75E
